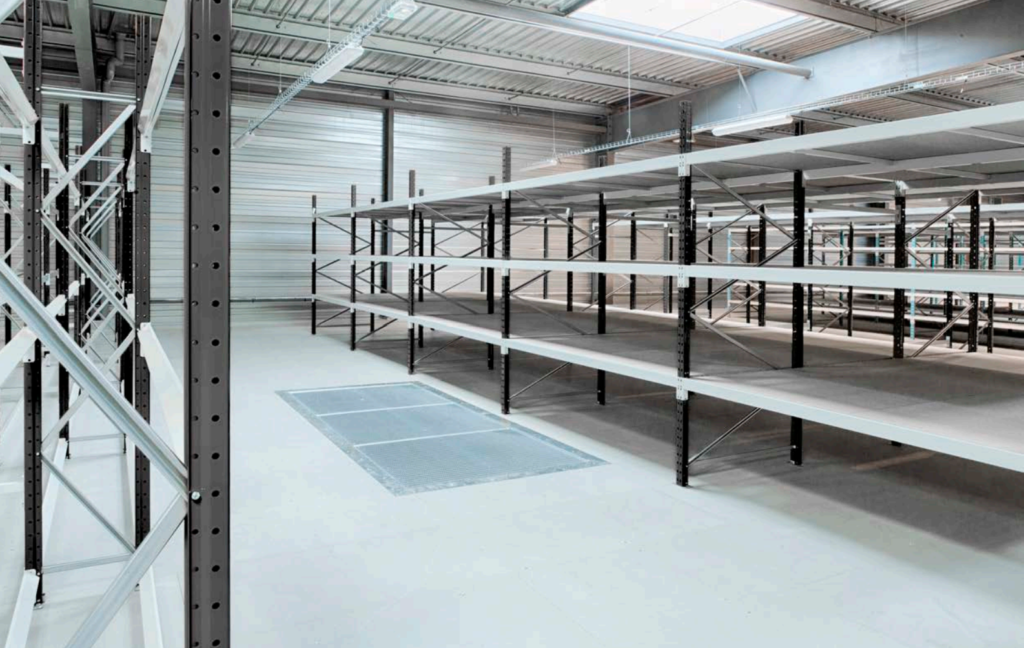

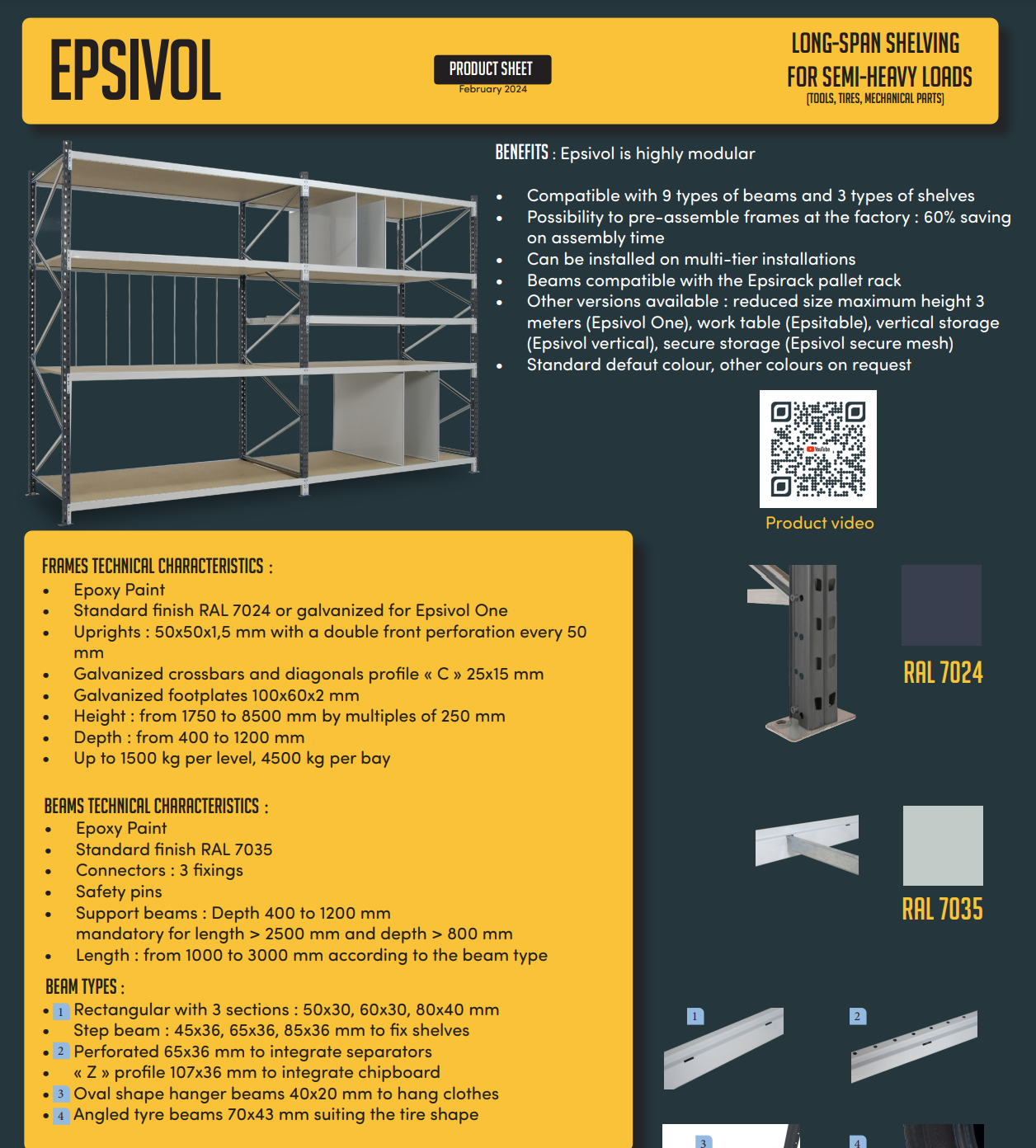

This highly modular shelving kit is predominantly used for tools, tires and mechanical parts.

Key benefits:

• Compatible with 9 types of beams and 3 types of shelves
• 60% savings on assembly time if frames pre-assembled at the factory
• Can be installed on multi-tier installations
• Beams compatible with the Epsirack pallet rack
• Other versions available : reduced size maximum height 3 meters (Epsivol One), work table (Epsitable), vertical storage (Epsivol vertical), secure storage (Epsivol secure mesh)
• Comes in standard defaut colour. colours on request

Frames technical specs:

• Epoxy Paint
• Standard finish (ref: RAL 7024) or galvanised for Epsivol One
• Uprights: 50x50x1,5 mm with a double front perforation every 50 mm
• Galvanised crossbars and diagonals “C” profile 25×15 mm
• Galvanised footplates 100x60x2 mm
• Height: from 1750 to 8500 mm by multiples of 250 mm
• Depth: from 400 to 1200 mm
• Up to 1500 kg per level, 4500 kg per bay

Beams technical specs:

• Epoxy Paint
• Standard finish (ref: RAL 7035)
• Connectors: 3 fixings
• Safety pins

Support beams:

• Depth 400 to 1200 mm mandatory for length > 2500 mm and depth > 800 mm
• Length: from 1000 to 3000 mm according to the beam type
